electrical resistant mat
Electrical Resistant Mat engineered to insulate and protect users from electrical shocks; this mat meets IEC 61111 standards. It undergoes dielectric testing and is available in classes 0 through 4, each offering increasing levels of AC/DC voltage protection.
Applications
Switchgear rooms, high voltage testing environments, and electrical control panels.

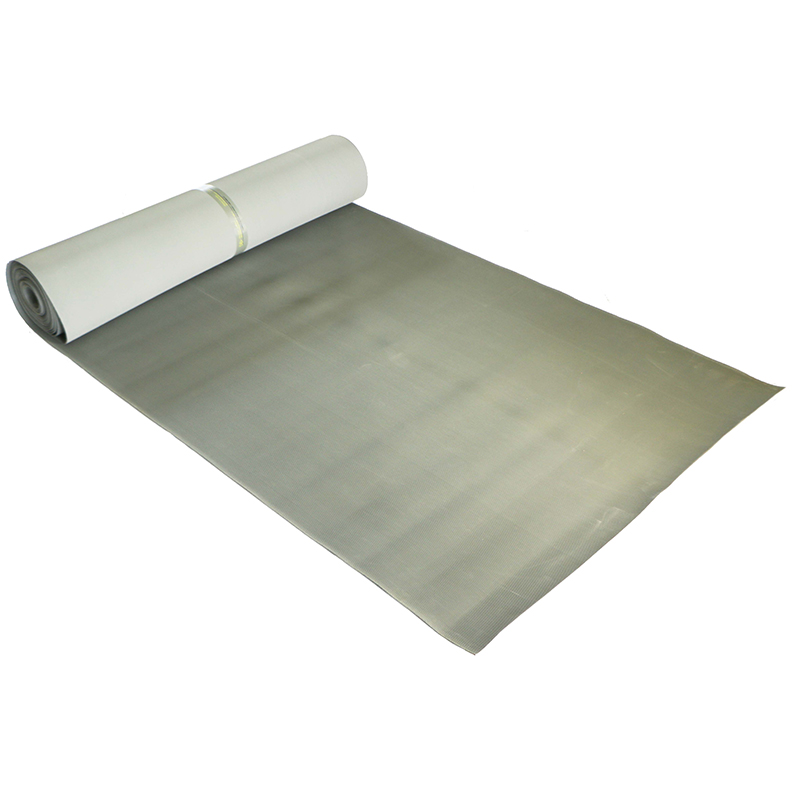

electrical resistant mat
Specification
| Class | Dielectric Test | Proof Test | Working Voltage (AC) | Working Voltage (DC) |
|---|---|---|---|---|
| Class 0 | 7500 V | 5000v | 1000v | 1500v |
| Class 1 | 1500v | 10000v | 7500v | 11250v |
| Class 2 | 30000v | 20000v | 17000v | 25500v |
| Class 3 | 40000v | 30000v | 26500v | 39750v |
| Class 4 | 50000v | 40000v | 36000v | 54000v |
